| Name: | Custom CNC Bakelite Service |
|---|---|
| Technology: | routing, milling, turning |
| Color: | Browm,orange,black |
| MOQ: | 1 piece |
| Tolerance: | ±0.2mm |
| Density: | 1.5 g/cm3 |
| Water absorption: | 1.5 |
| Tensile Strength: | 100Mpa |
| Bonding strength: | 3600N |
| Combustibility: | 94HB |
| Impact strength: | 67 KJ/m |
Product Description
Bakelite are widely used in electronic products, insulated switches, mechanical molds and other products due to their insulation, no static electricity, abrasion resistance and high temperature resistance. It is a man-made synthetic chemical substance, once it is heated and formed, it will solidify and cannot be formed into other properties.
| Products Name: | Custom bakelite machining |
| Color: | Brown (orange), black |
MOQ | 1 piece |
Tolerance: | ±0.2mm |
Popular thickness: | 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm |

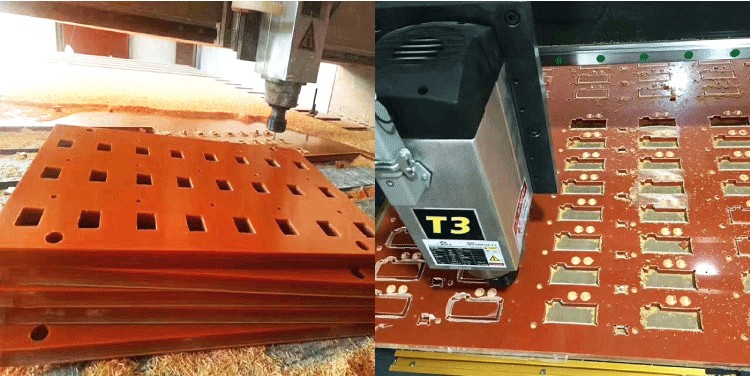

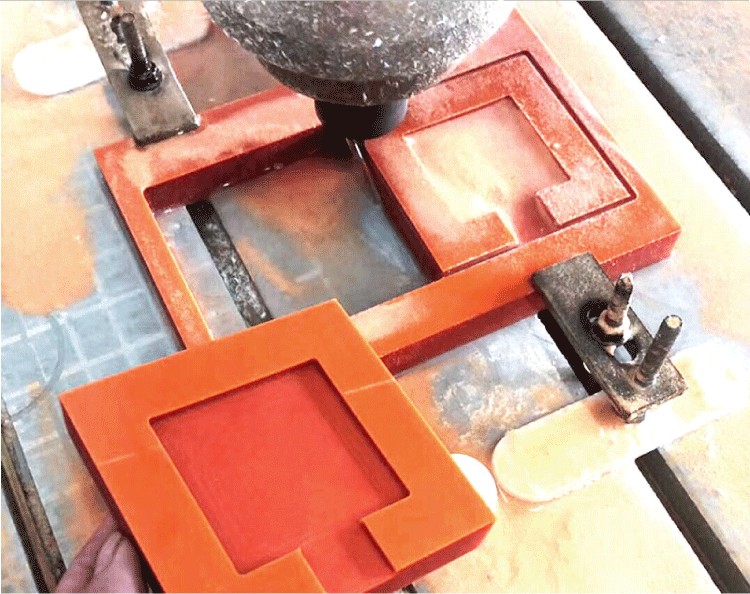

Technology | Routing cutting (engrave). Could provide turning, 3 axis, 4 axis, 5 axis service as wel |
Produce time: | produce time about 8-12 days. |
| Color: | Brown/ Black | |
Density: | g/cm3 | 1.5 |
Temperature resistance (continuous): | ℃ | 100 |
Water absorption: | % | 1.5 |
Coefficient of linear thermal expansion: | Kx | 10 |
Combustibility: | HB | 94 |
Vertical layer bending strength: | Mpa | 120 |
Vertical layer compression strength: | Mpa | 250 |
Tensile Strength: | Mpa | 100 |
Impact strength: | kJ/m | 67 |
Bonding strength: | N | 3600 |
Insulation resistance after immersion in water: | Ω | 1.0*10 |
Vertical layer direction electric strength: | KV/m | 12.1 |
Parallel layer breakdown voltage: | KV | 10 |
Relative permittivity: | 1MHz/50Hz | 5.5/- |
Volume resistance: | Ωxcm | 10-7~10-8 |
CNC MACHINING Quality Control:
Quality inspection report link
